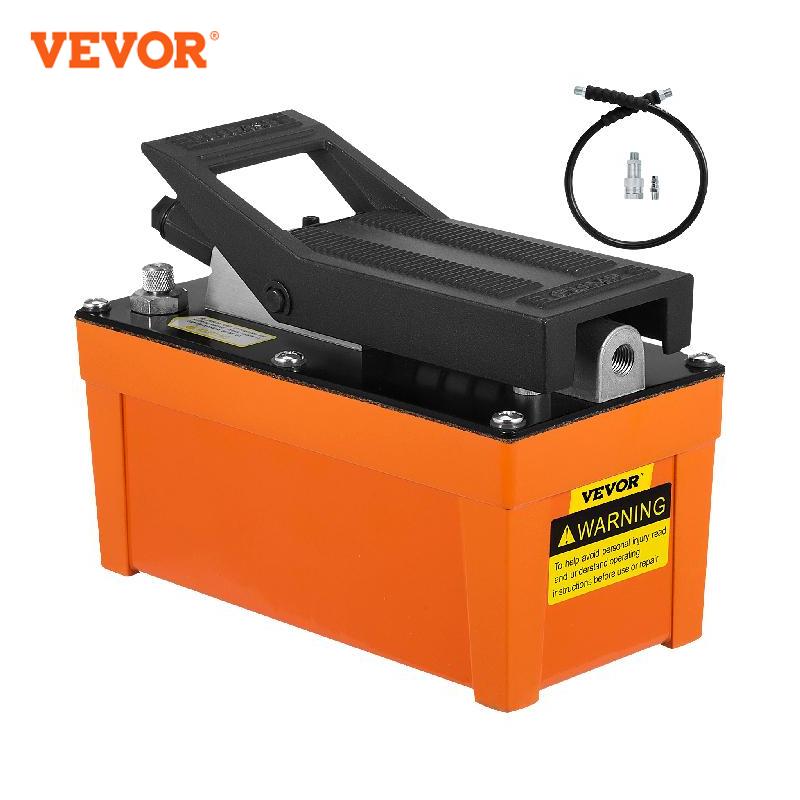

VEVOR Air Hydraulic Pump 10000PSI Pneumatic Foot Pump Orange Color for Heavy Machinery Rigging&Moving, Auto Repair, Oil Rigging

$252.45 – $327.48

SKU: 1005005741568846
  • Type: AIR PUMP
  • Brand Name: VEVOR
  • Origin: Mainland China
  • Certification: CE
  • Type: Air Powered Hydraulic Pump
  • Action: Single Acting
  • Flow Rate: 0.8 liters / 0.21 gallons per minute
  • Air ConnectionT: 1/4" Female NP
  • Air Pressure Range: 0.7-1MPa
  • Fuel Tank Capacity: 1.6L
  • Maximum Oil Output: 1.3L
  • Oil Output Pressure: 70MPa
  • Max Output Hydraulic Pressure: 10000 psi / 700 bar

Product Description
10,000 PSI Air Hydraulic Foot Pump
Foot Pedal Control & 1.6L Oil Tank & 6.56 ft Hydraulic Hose

  • This high-pressure air-powered hydraulic pump is constructed for security, durability, and the delivery of higher oil flow, ideal for delivering compact air over hydraulic. The user-friendly foot-actuated design provides hands-free operation. It is engineered to meet users' standards with high-quality performance and fine metering capabilities for precise control—a perfect pump for all your auto body shop hydraulic needs.

  • Fundamental Parameters

  • Foot-Actuated Design

  • Sturdy & Compact Construction

  • Durable Oil Pipe Included

  • 10,000 PSI for Wide Application

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features

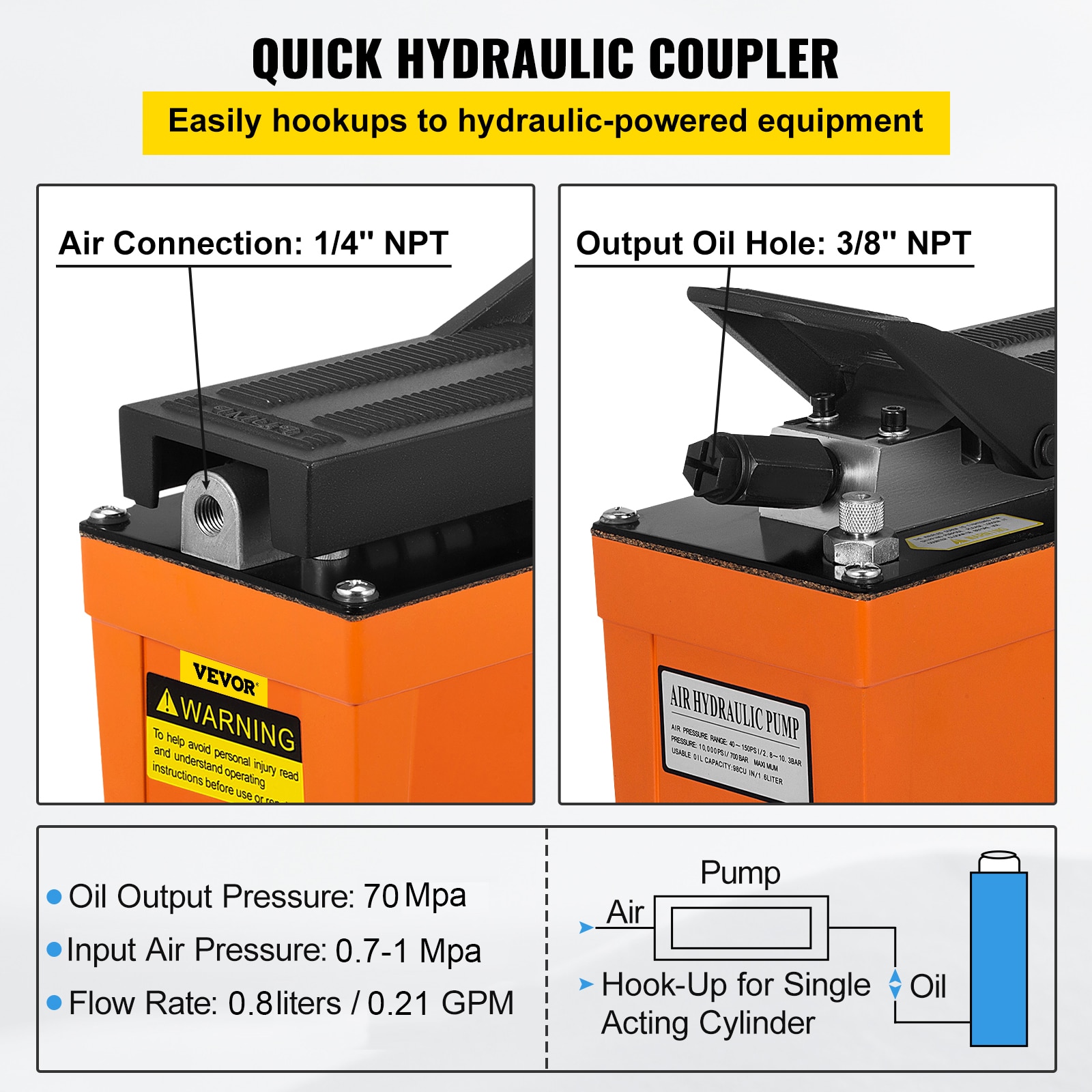

Standard Air Inlet & Oil Outlet
The air hydraulic pump features a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port conveniently hookups to hydraulic-powered equipment.

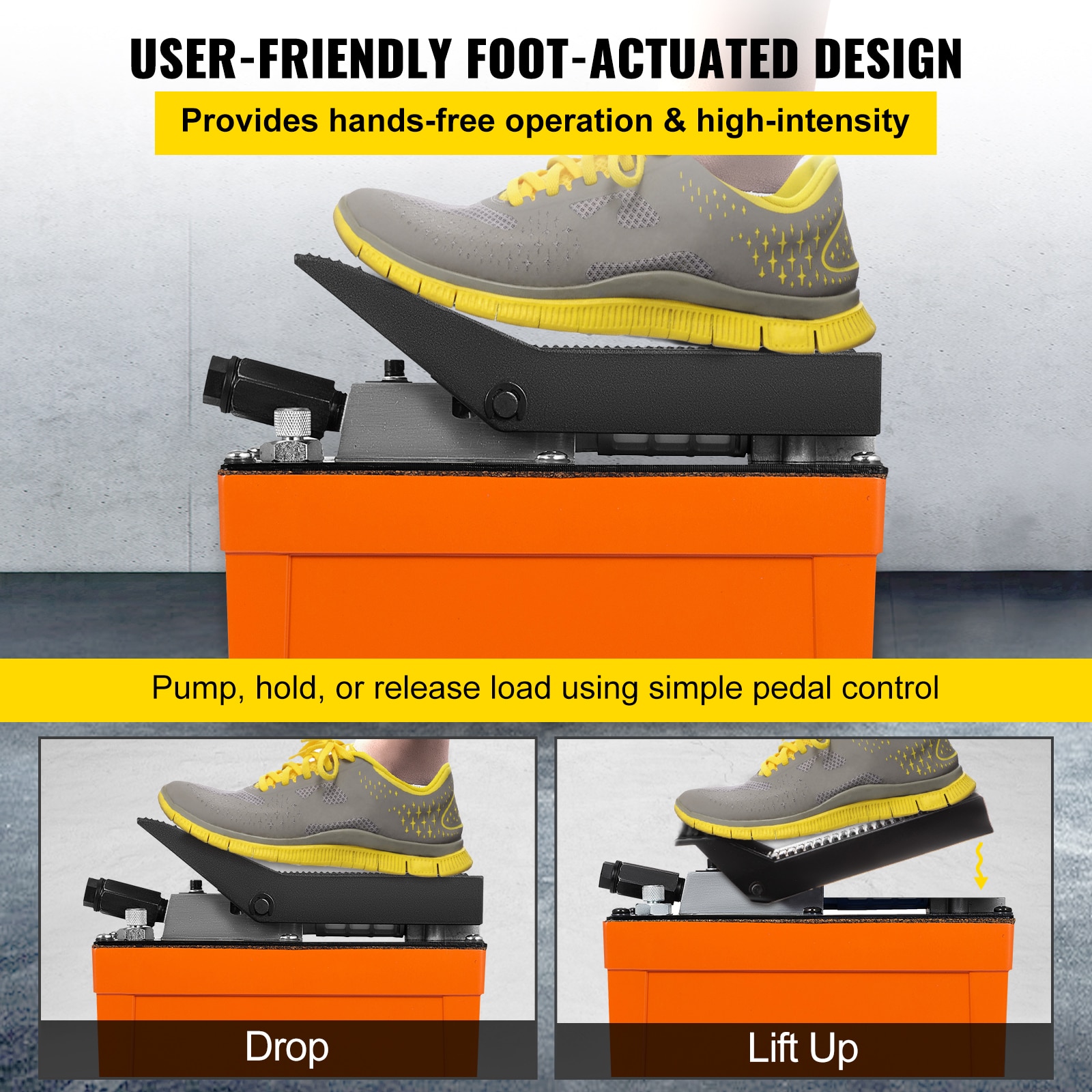

Simple Foot Pedal Control
The high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, it allows fine control of the pump while keeping both hands free.

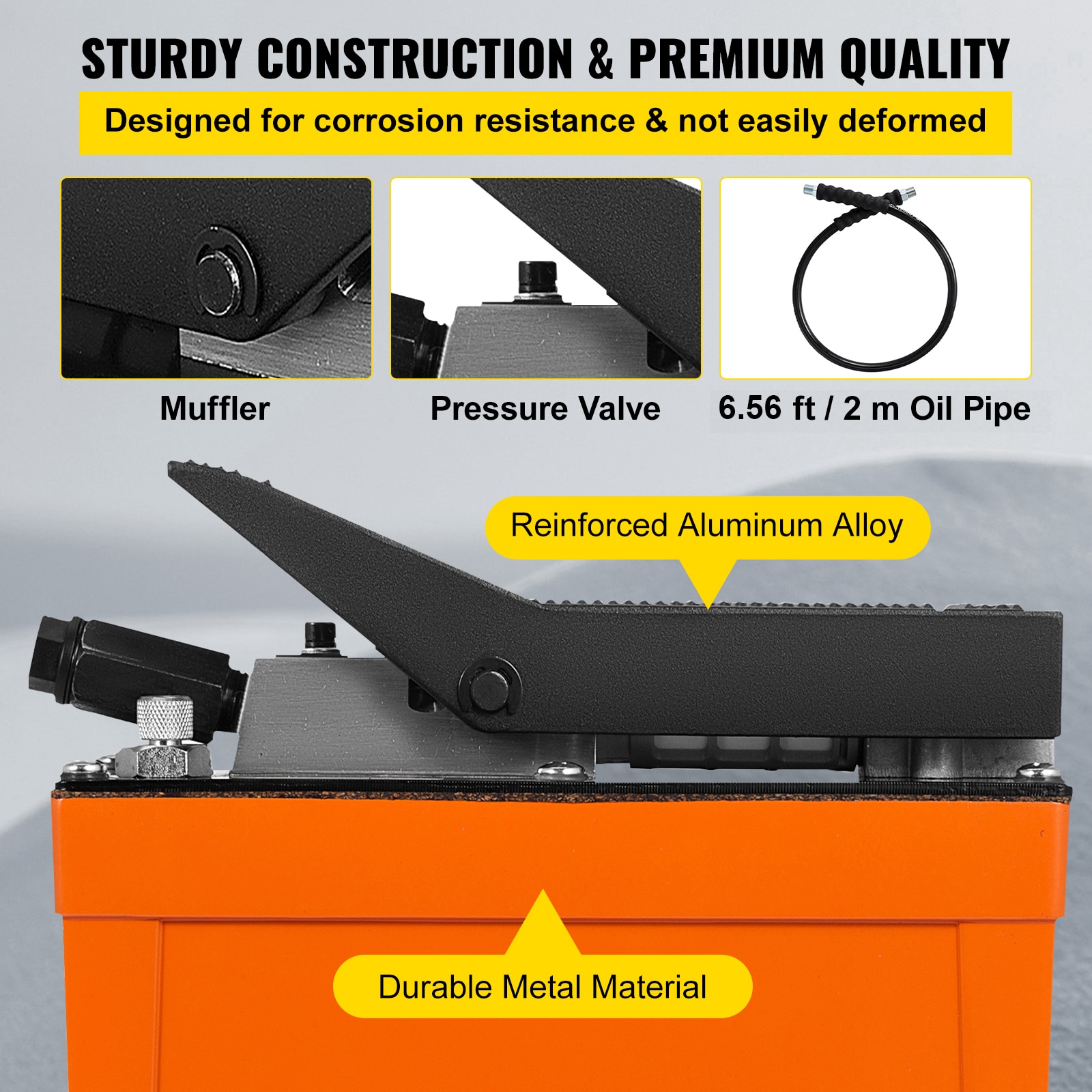

Premium Quality & Structure
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed.

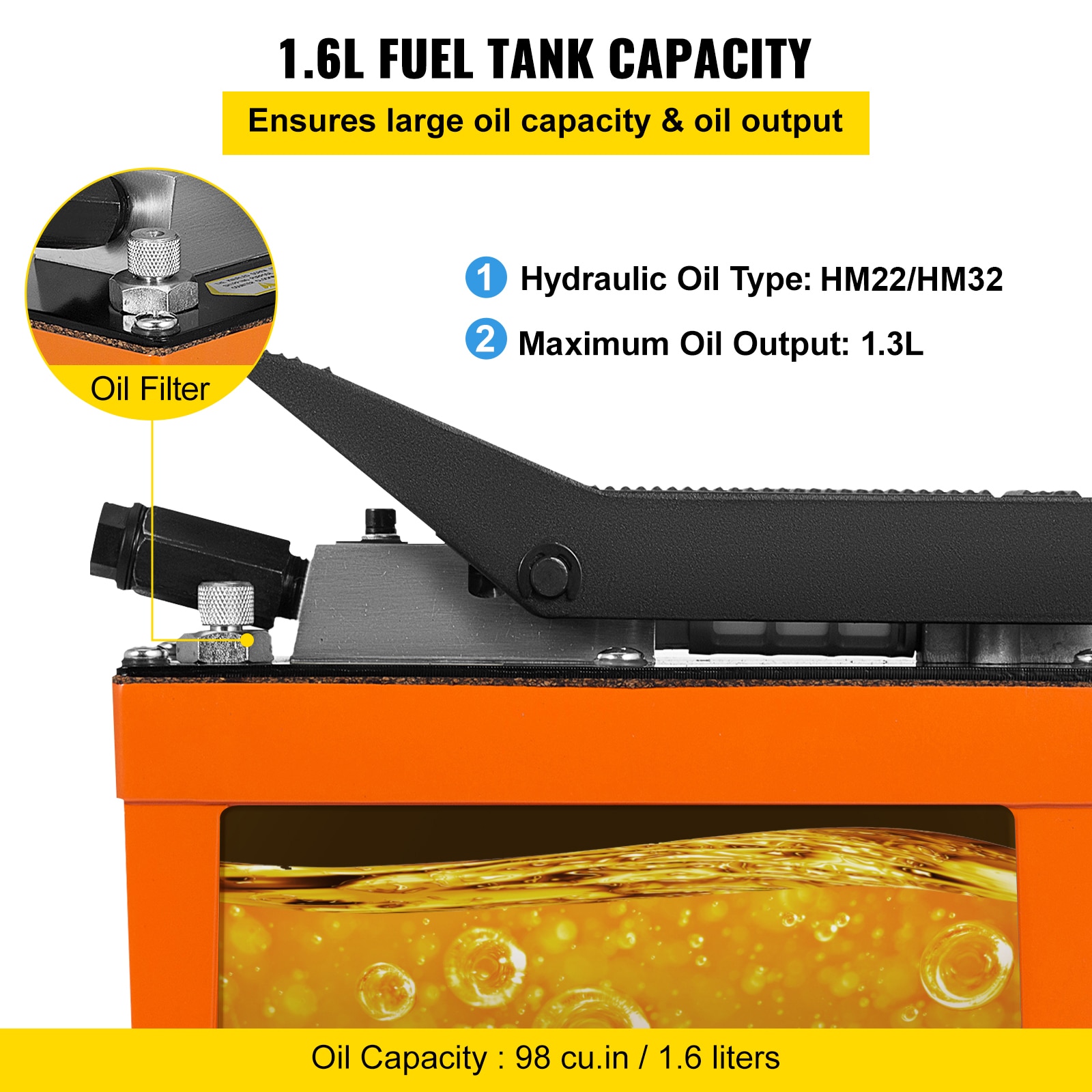

1.6L Large Oil Tank
The hydraulic air foot pump adopts a 1.6L ± 0.1L aluminum alloy fuel tank with 98 cubic Inches / 1.6 liters oil capacity for high performance. Moreover, it ensures you have the supply needed to power your equipment.

High-Pressure Hydraulic Hose
This hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. Hydraulic Hose: 6.56 ft / 2 m with 3/8 NPT - Quick hydraulic coupler.

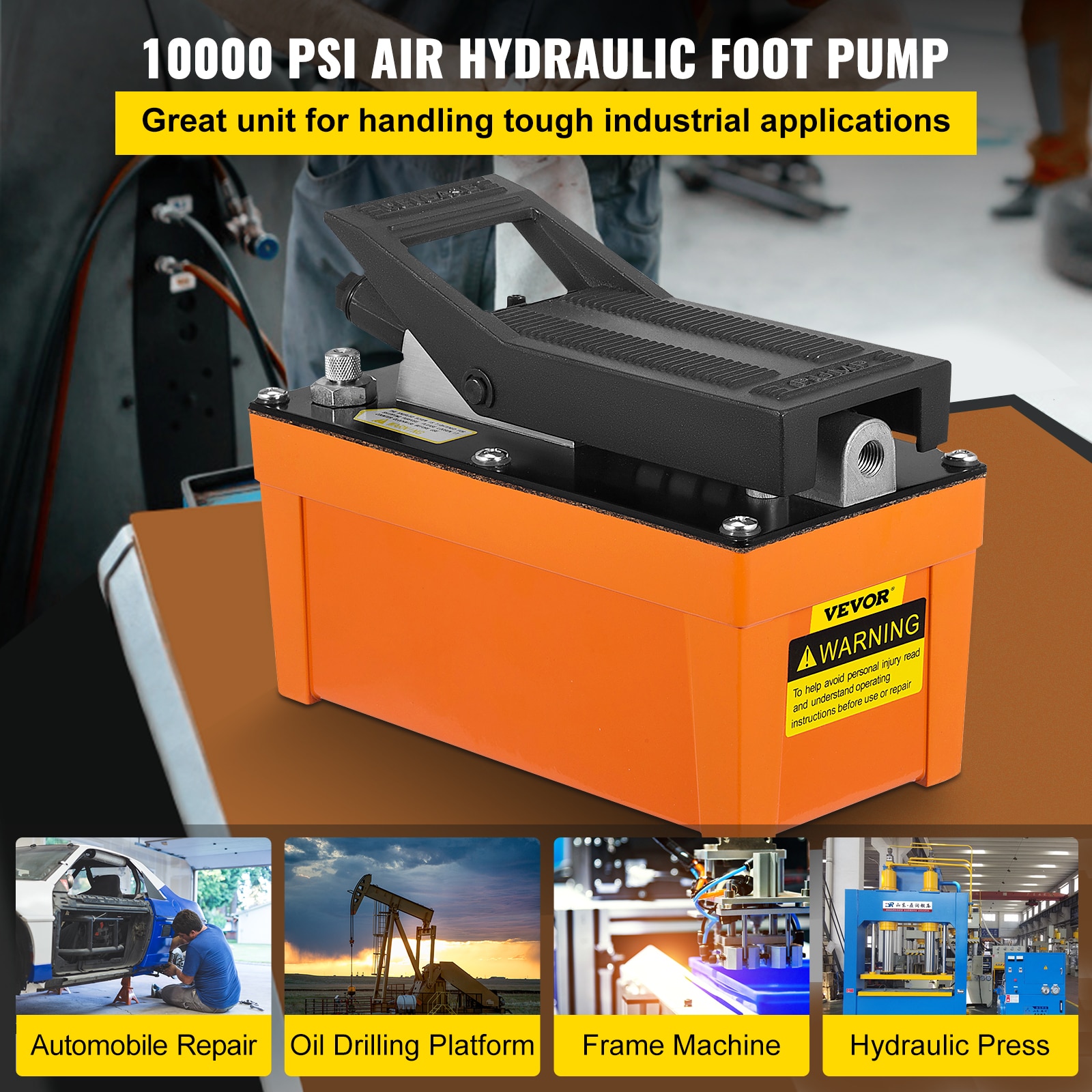

Multiple Application
This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It effectively operates your frame machine, hydraulic presses, etc.

Specifications

  • Type: Air Powered Hydraulic Pump

  • Action: Single Acting

  • Control: Foot pedal pump - Release pressure to return fluid

  • Includes Hydraulic Hose: 2 m / 6.56 ft with 3/8'' NPT - Quick hydraulic coupler

  • Flow Rate: 0.8 liters / 0.21 gallons per minute

  • Air Connection: 1/4" Female NPT

  • Output Oil Hole: 3/8'' NPT Connection

  • Hydraulic Oil Type: HM22/HM32

  • Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc)

  • Air Pressure Range: 0.7-1MPa

  • Shell Material: Reinforced Aluminum Alloy

  • Fuel Tank Capacity: 1.6L

  • Capacity Tolerance: ± 0.1L

  • Maximum Oil Output: 1.3L

  • Oil Output Pressure: 70MPa

  • Pressure Range: ≥0.5

  • Max Output Hydraulic Pressure: 10000 psi / 700 bar

Package Content

  • 1 x Air Powered Hydraulic Pump

  • 1 x High-Pressure Oil Pipe

  • 1 x Quick Connector

Features & Details

  • 【Fundamental Parameters】: The hydraulic foot pump has a maximum working pressure of 10,000 PSI. Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Air Pressure Range: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa.

  • 【Foot-Actuated Design】: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure. The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.

  • 【Sturdy & Compact Construction】: This air hydraulic foot pump features a high-quality aviation aluminum pump core and shell to handle tough industrial applications. 1.6L ± 0.1L oil tank has a larger capacity with 1.3 liters maximum oil output. Built-in internal relief valve protects the hydraulic components regardless of hydraulic pressure.

  • 【Durable Oil Pipe Included】: This hydraulic air pump is equipped with a 6.56 ft / 2 m high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable, no worry about the oil leak.

  • 【10,000 PSI for Wide Application】: This high-pressure hydraulic air-powered pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. An ideal all-around power source and a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.
